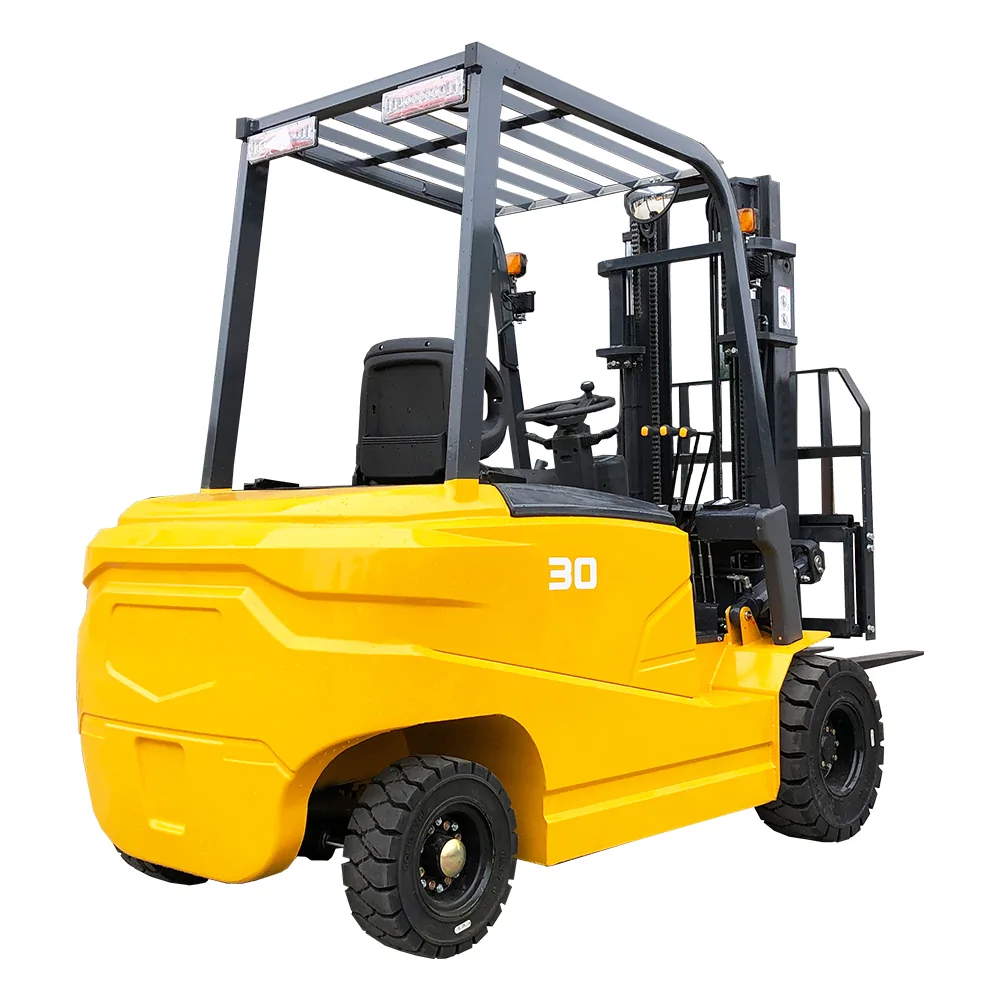

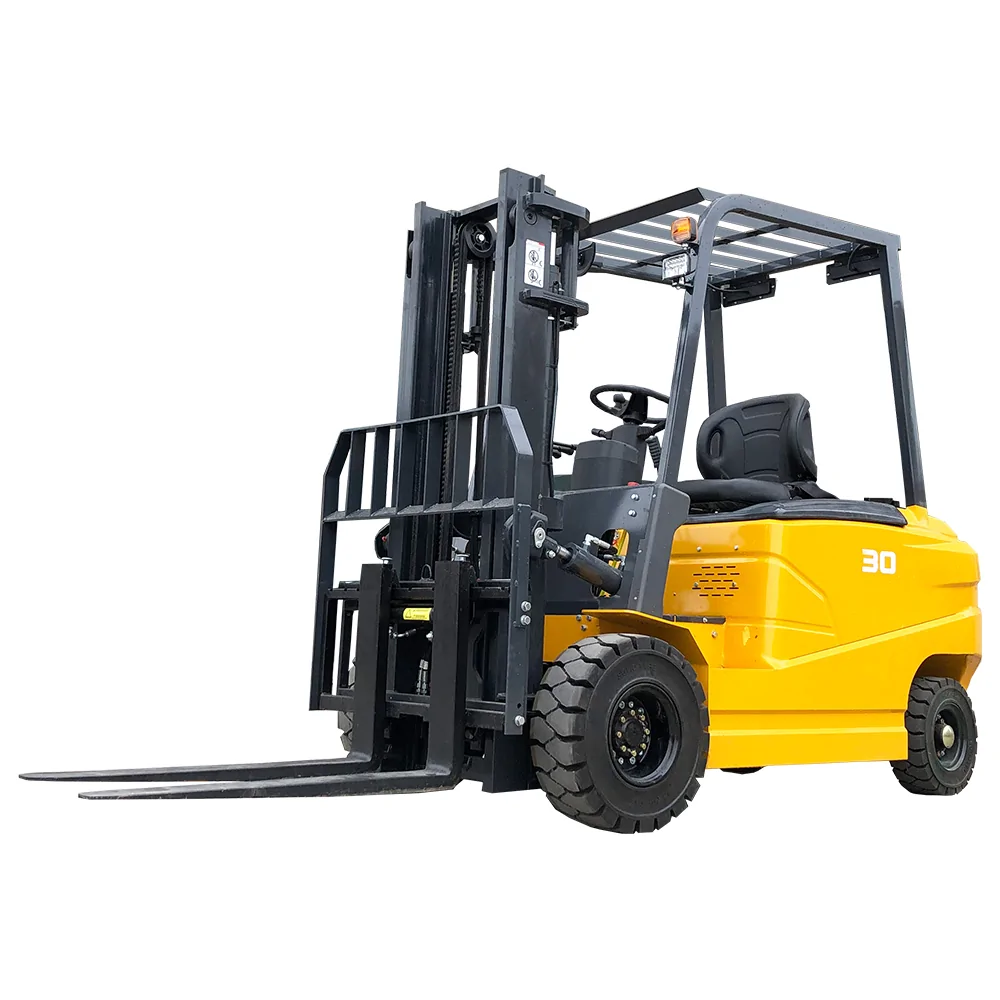

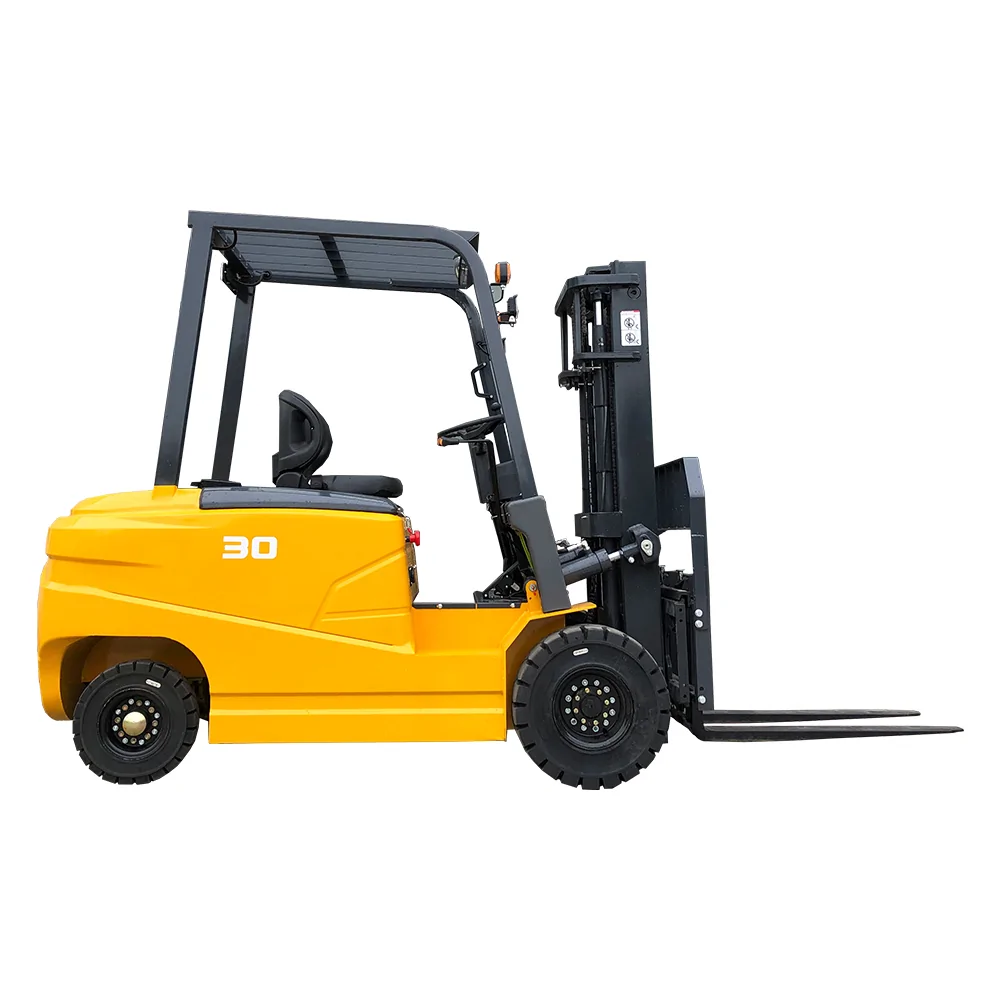

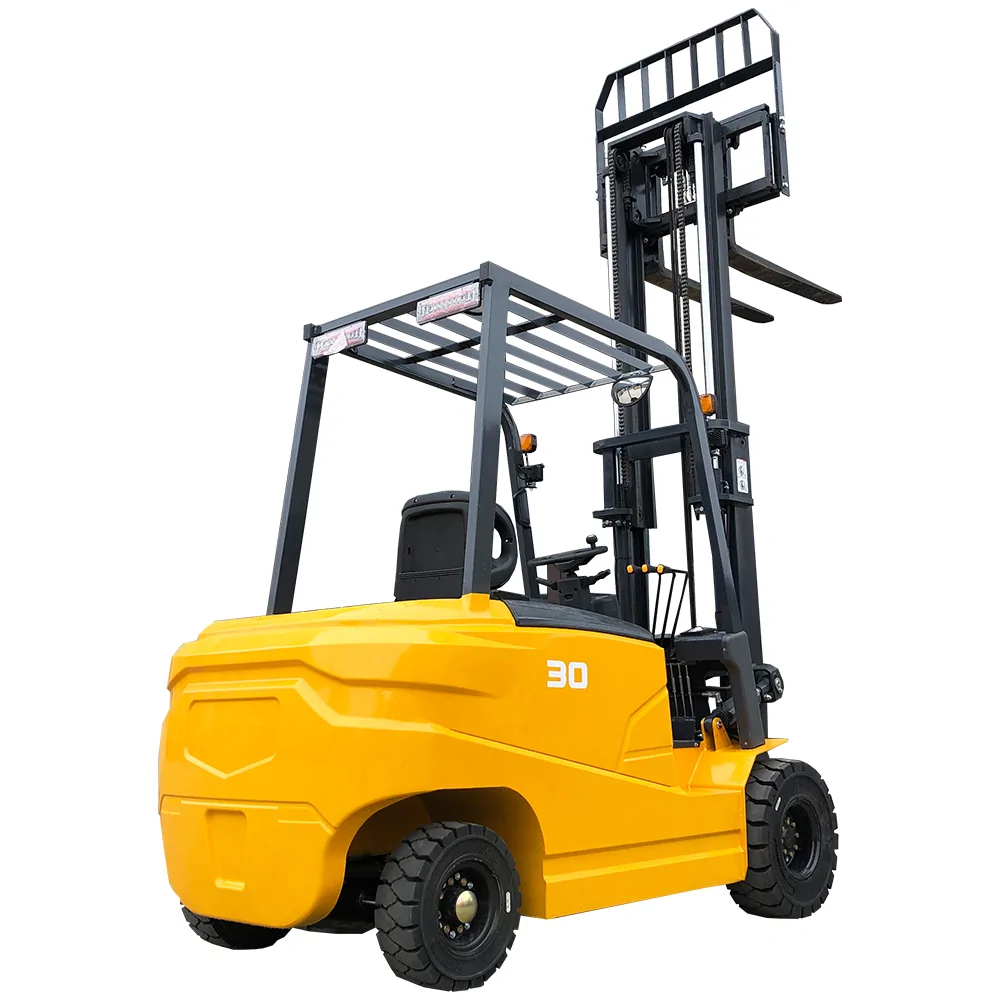

Electric Forklift 3500 MM

Specifications – Electric Forklift 3500 MM

Power Type: Electric Forklift
Rated Load Capacity: 3000 kg
Lift Height & Mast Type:
3500 mm – 2 Stage Mast
Overall Dimensions (L × W × H):
2500 × 1170 × 2170 mm (without forks)
Load Centre: 500 mm
Lowered Mast Height: 2185 mm
Front / Rear Overhang: 500 mm / 430 mm
Wheelbase: 1650 mm
Minimum Ground Clearance: 200 mm
Wheel Base (Front / Rear): 950 mm / 930 mm
Turning Radius: 2140 mm (inner) / 2700 mm (outer)
Tilt Angle (Forward / Backward): 6° / 12°
Fork Size (L × W × T): 1070 × 45 × 100 mm
Travel Speed (Loaded / Unloaded):
13 km/h / 14 km/h
Max. Gradeability (Loaded / Unloaded):
15% / 20%
Number of Wheels: 4 (2 drive wheels)
Tire Type: Solid Rubber Tires
Tire Size (Front / Rear): 6.50–10 / 5.00–8
Service Brake: Hydraulic braking system
Parking Brake: Mechanical hand brake
Controller: Japanese electronic control
Battery Voltage & Capacity: 60V / 430Ah (Lead-acid, 5 pcs)
Main Motor Power: 4 kW
DC Drive Motor: 5 kW
DC Oil Pump Motor: 4 kW
Operating Weight: 3325 kg

Standard Features
Lead-acid battery, 2-stage mast, solid tires, heavy-duty steel counterweight, LED lights, backup alarm, mirror, LED dashboard
