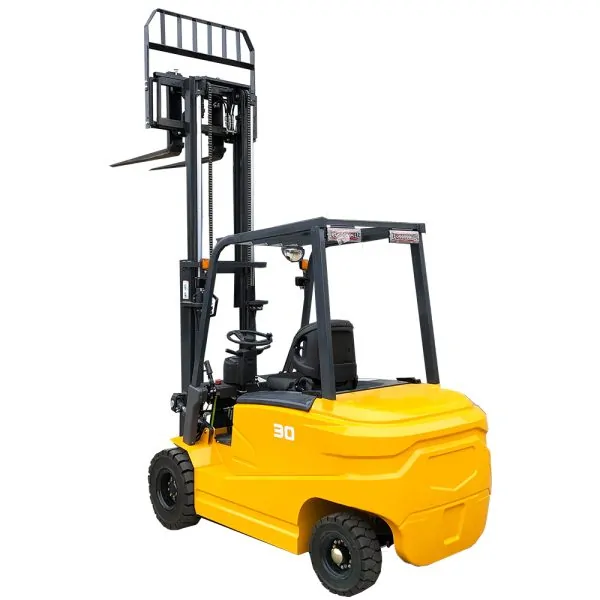

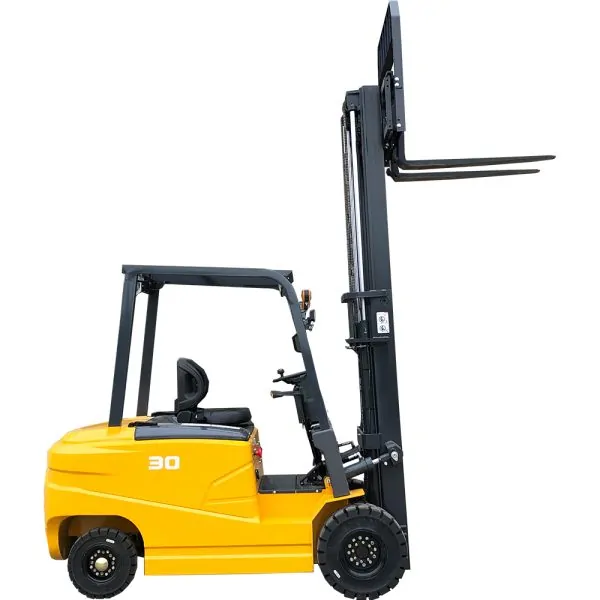

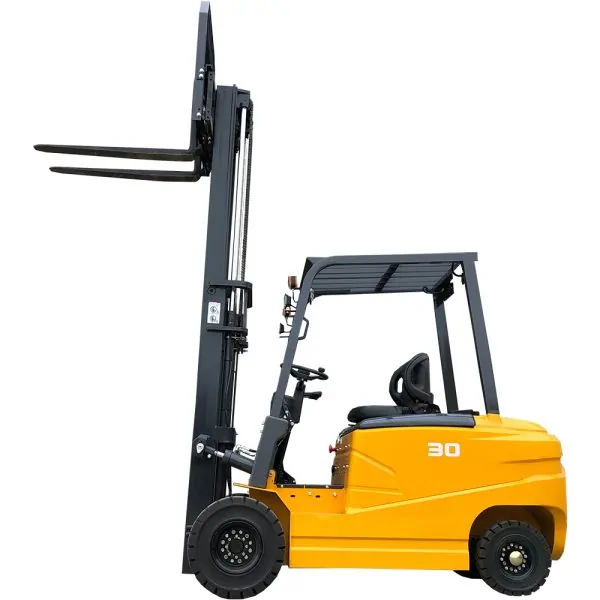

Electric Forklift 4500 MM

Electric Forklift 4500 MM is a high-lift, battery-operated forklift designed for safe, efficient, and emission-free material handling in industrial environments.

Whatsapp Us Request a call

Description

Specifications – Electric Forklift 4500 MM

Power Type: Electric
Load Capacity: 3000 kg
Lift Height & Mast Type:
4500 mm – 3 Stage Mast
Overall Dimensions (L × W × H):
2500 × 1170 × 2170 mm (without forks)
Load Centre: 500 mm
Lowered Mast Height: 2100 mm
Front / Rear Overhang: 500 mm / 430 mm
Wheelbase: 1650 mm
Minimum Ground Clearance: 100 mm
Wheel Track (Front / Rear): 950 mm / 930 mm
Turning Radius (Inner / Outer): 2140 mm / 2700 mm
Tilt Angle (Forward / Backward): 6° / 12°
Fork Size (L × W × T): 1070 × 45 × 120 mm
Travel Speed (Loaded / Unloaded):
13 km/h / 16 km/h
Max. Gradeability (Loaded / Unloaded):
15% / 20%
Number of Wheels: 4 total (2 drive wheels)
Tire Type: Solid
Tire Size (Front / Rear): 6.50–10 / 5.00–8
Service Brake: Hydraulic
Parking Brake: Mechanical
Controller: JAHENG
Battery Voltage & Capacity:
60 V / 430 Ah (Lead-acid, 5 pcs)
Main Motor Power: 4 kW
DC Drive Motor: 5 kW
DC Oil Pump Motor: 4 kW
Operating Weight: 3350 kg

Standard Features
60V/430Ah lead-acid battery, 3-stage mast, heavy-duty solid tires, steel counterweight, LED lights, LED dashboard, backup alarm, mirrors, overhead guard, tilt-lock, full hydraulic steering.
