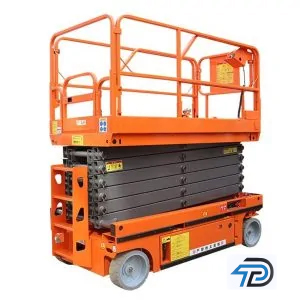

Self Propelled Scissor Lift 12 Mtr

Specification – Self Propelled Scissor Lift

Max. Working Height: 14 m
Max. Platform Height: 12 m
Load Capacity: 320 kg
Table Extension Size: 0.9 m
Extended Platform Safe Working Load: 113 kg
Work Platform Size (L × W × H): 2.3 × 1.15 × 1.1 m
Minimum Ground Clearance: 0.1 / 0.02 m
Wheelbase: 1.89 m
Turning Radius (Outer Wheel): 0 / 3.1 m
Drive Motor / Lifting Motor: 24 V / 3.3 kW
Lifting Speed: 3–5 m/min
Machine Travel Speed (Closed State): 3.5 km/h
Machine Travel Speed (Lifting State, 3 m Height): 0.8 km/h
Battery: 4 × 12 V / 300 Ah
Charger: 24 V / 30 A
Maximum Climbing Ability: 25%
Maximum Allowable Angle of Work: 1.5° / 3°
Tire Size (Drive Wheel): Φ381 × 127 mm
Overall Dimensions C×D×E (L × W × H, Guardrail Not Folded): 2.45 × 1.18 × 2.6 m
Overall Dimensions C×D×E (L × W × H, Guardrail Folded): 2.45 × 1.18 × 2.0 m
Total Weight: 2950 kg
