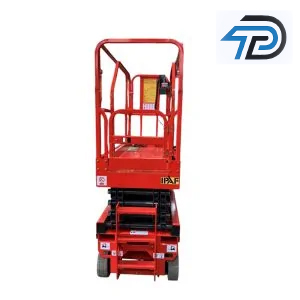

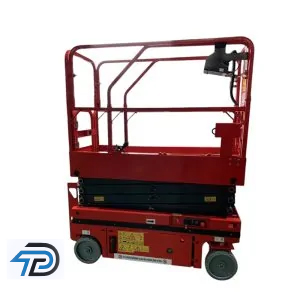

Self Propelled Scissor Lift 6 Mtr
Technical Specifications
Max. Working Height: 7.8 m
Max. Platform Height: 5.8 m
Load Capacity: 230 kg
Extended Platform Safe Working Load: 113 kg
Working Platform Size (L × W × H): 1.67 × 0.74 × 1.1 m
Overall Dimensions (L × W × H, Guardrail Not Folded): 1.90 × 0.76 × 2.13 m
Overall Dimensions (L × W × H, Guardrail Folded): 1.90 × 0.76 × 1.8 m
Extended Area of Platform: 0.9 m
Minimum Ground Clearance (Folded / Lifted): 0.03 / 0.06 m
Wheelbase: 1.35 m
Turning Radius (Outer Wheel): 1.64 m
Lifting Motor: 24 V / 3.3 kW
Lifting Speed: 3–5 m/min
Machine Travel Speed (Folded State): 3.5 km/h
Machine Travel Speed (Lifting State): 0.8 km/h
Battery: 4 × 6 V / 225 Ah
Charger: 24 V / 30 A
Maximum Climbing Ability: 25%
Maximum Allowable Working Angle: 1.5° / 3°
Tire Size (Drive Wheel): Φ305 × 100 mm
Total Weight: 1,500 kg
Standard Configuration
Proportional control
Automatic brake
Buzzer
0.9 m extended platform
Automatic pothole protection
Emergency descent
Horn
Charging protection
Tubing explosion-proof
Emergency stop
Platform self-locking door
4 × 2 drive
Standard transport forklift
Fault diagnostic system
Seamless tire
Tilt protection system
Folding platform railing
Model: 6 M
